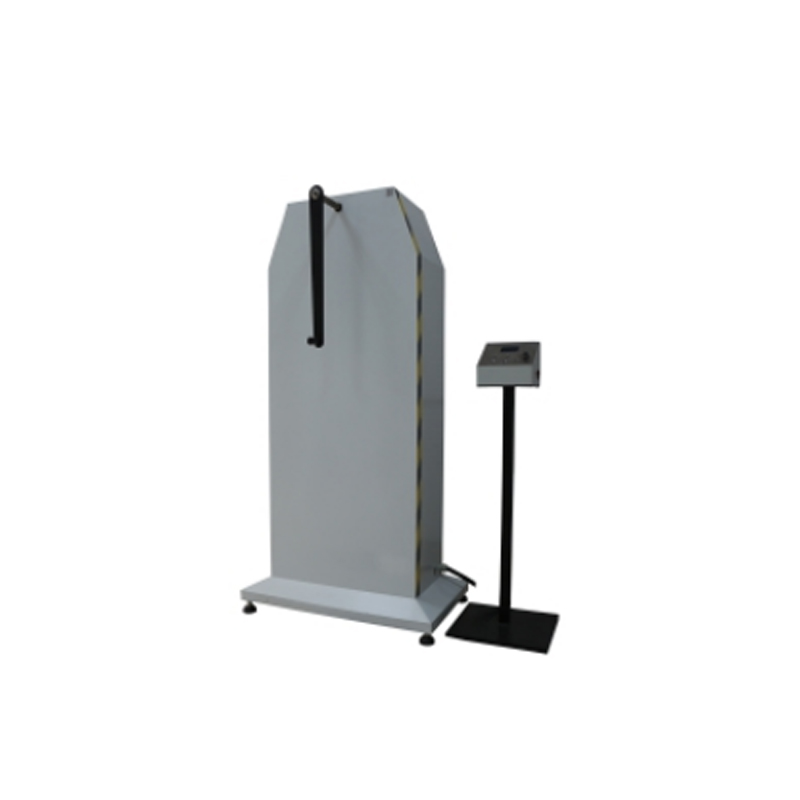

Schoolbag Swing Tester GT-LC13

(Furniture Testing)

Item NO.:
GT-LC13
Lead Time:
15-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
QB/T 2858-2007

Contact Now

Description

Applications:

This machine is applicable to the swing and drop test of the book bag. The book bag is loaded with a certain load, hung on the machine fixture, swung at a certain angle for a certain number of times, or dropped vertically after a certain period of rest, to check whether the bag's strap, handle and adjusting shackle are firm, and measure the deformation of the length of the connecting parts.

Standards:

QB/T 2858-2007 Test method for bag swing test and static drop test

Feature

Touch screen control, easy to operate.
The height of the sample lifting device can be adjusted to facilitate the test of different samples.
Intelligent system, the test results are accurate and reliable.
With power-off saving function.

Key Specifications

Model	GT-LC13
Lifting Angle	60°
Test Method	Swing Test and Drop Test
Drop Up and Down Adjustment Stroke	0～700mm
Test Speed	20～40times/min（Adjustable）
Counting Range	1～99999, automatic shutdown
Power Supply	1∮, AC220V 50Hz 300W
Dimensions (L x W x H)	1100mm×1300mm×2055mm
Weight	About 300kg
