Seat Loading Pad GT-LB01-2

(Furniture Testing)

Item NO.:
GT-LB01-2
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T ,L/C
certificate:
ISO 9001, UKAS, CE
standard:
EN 1728 Section 5.2 , EN1335-3 Section 5.3 , BS5459-2-2000 Section A3.4, EN581-2

Contact Now

Description

Seat loading pad

Applications:

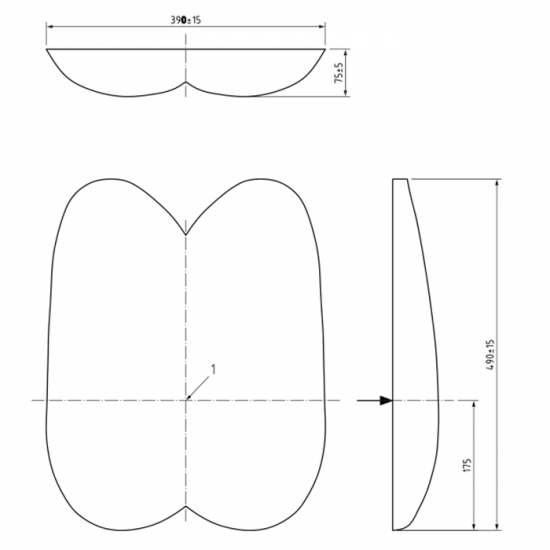

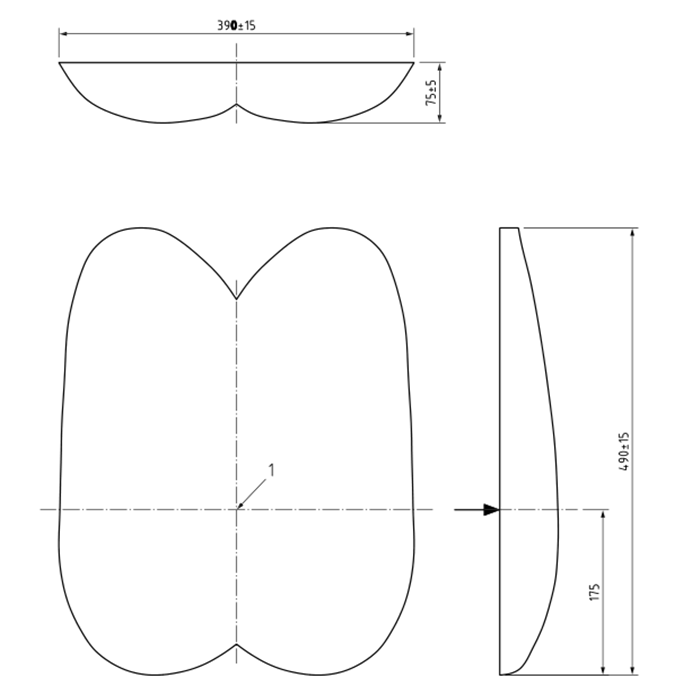

Seat loading pad, which is a naturalistically shaped rigid indenter with a hard, smooth surface . Used to simulate the human buttocks to load on the set.

Standards:

EN 1728 Section 5.4; EN1335-3 Section 5.3; BS5459-2-2000 Section A3.4; EN581-2;

GB10357-3 -2013 Section 3.6; ISO7173-1989 Section 6.3; EN 1022-2018 Section5.11

Key Specifications

Model	GT-LB01-2
Material	Plastic steel
Load cushion length	490±15mm
Loading pad width	390±15mm
Load cushion thickness	75±5mm
Dimension (L×W×D)	490×390×75mm
Weight	16kg

Applications Industry

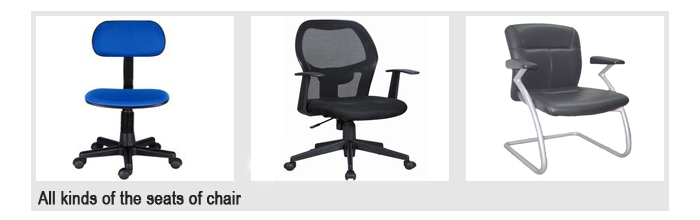

All kinds of seats of chair can be tested on the Seat Loading Pad
