Loading Point Template GT-LB01-1

(Furniture Testing Equipment)

  • Item NO.:

    GT-LB01-1
  • Lead Time:

    20-30 days
  • Brand:

    GESTER
  • Payment:

    T/T ,L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    EN 1728 Section 5.1 , EN 1022 Section 4.6, BS5459-2-2000 Section A3.2 , EN581-2
Description

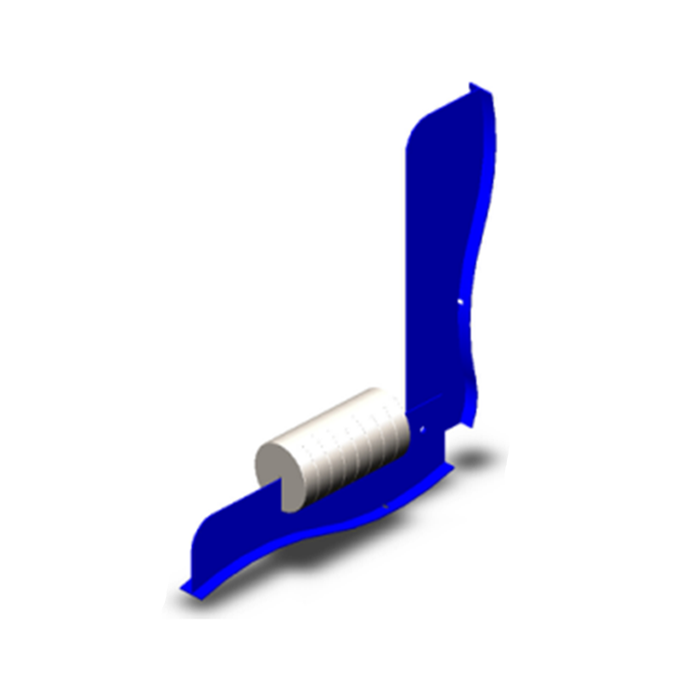

Loading point template


Applications:

A template, which consists of two shaped members fastened together by a pivot at one end .The contours of the shaped surfaces are so devised as to sink into the upholstery. For this purpose the seat loading arm shall have a mass of 20 kg applied at the seat loading point.




Standards:

EN 1728 Section 5.; EN 1022 -2018 Section 5.2; BS5459-2-2000 Section A3.2; EN581-2

GB10357-3-2013 Section 3.1; ISO7173-1989 Section 6.10






Key Specifications


Model

GT-LB01-1

Material

Steel

Dimension (L×W×D)

600×500×50mm

Weight

33kg

Standard Accessories

20KG weight    1set



Applications Industry

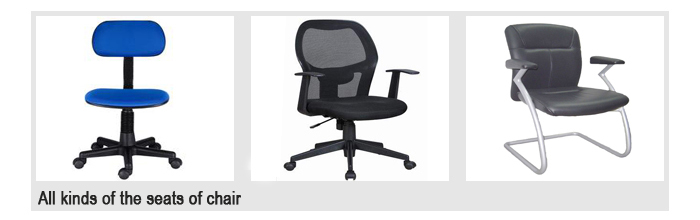

All kinds of seats of chair can be tested on the Loading Point Template
