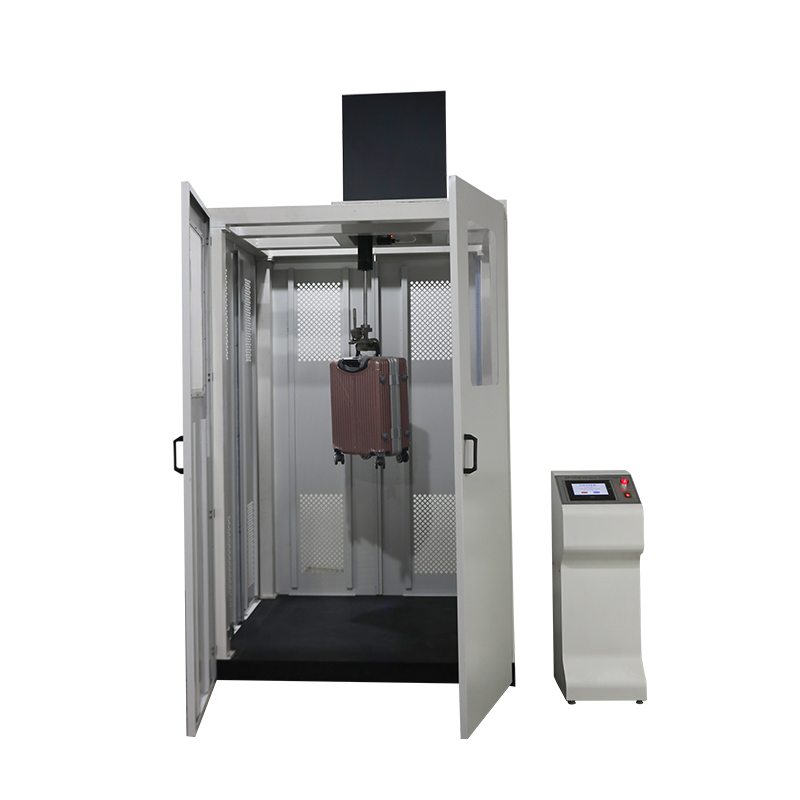

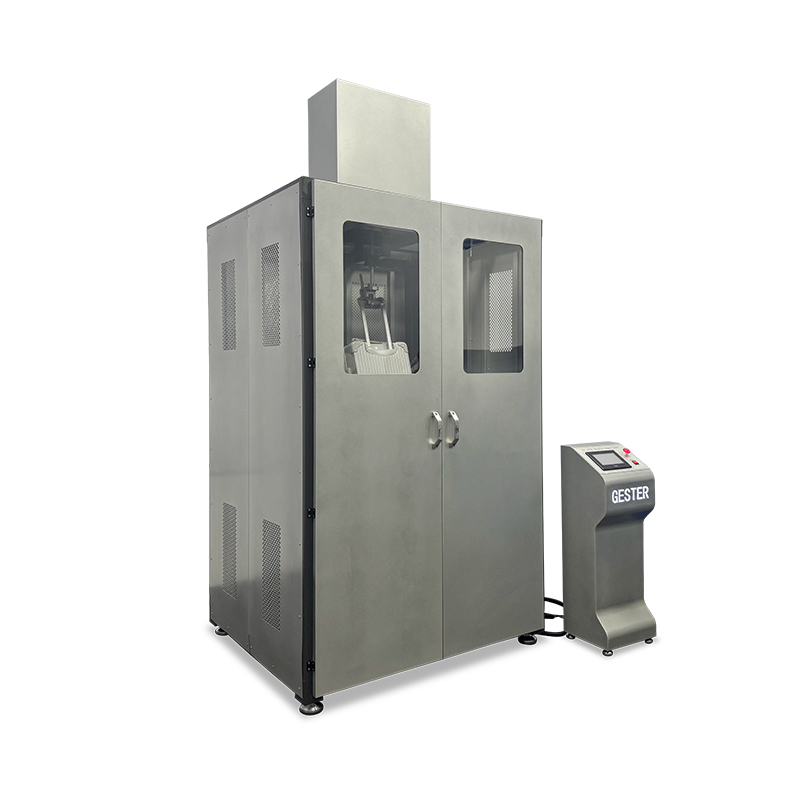

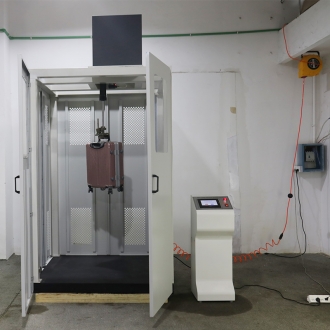

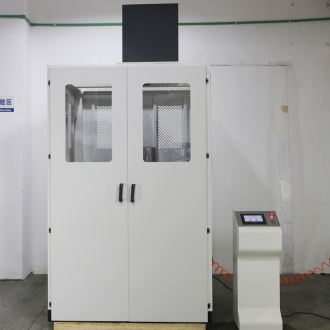

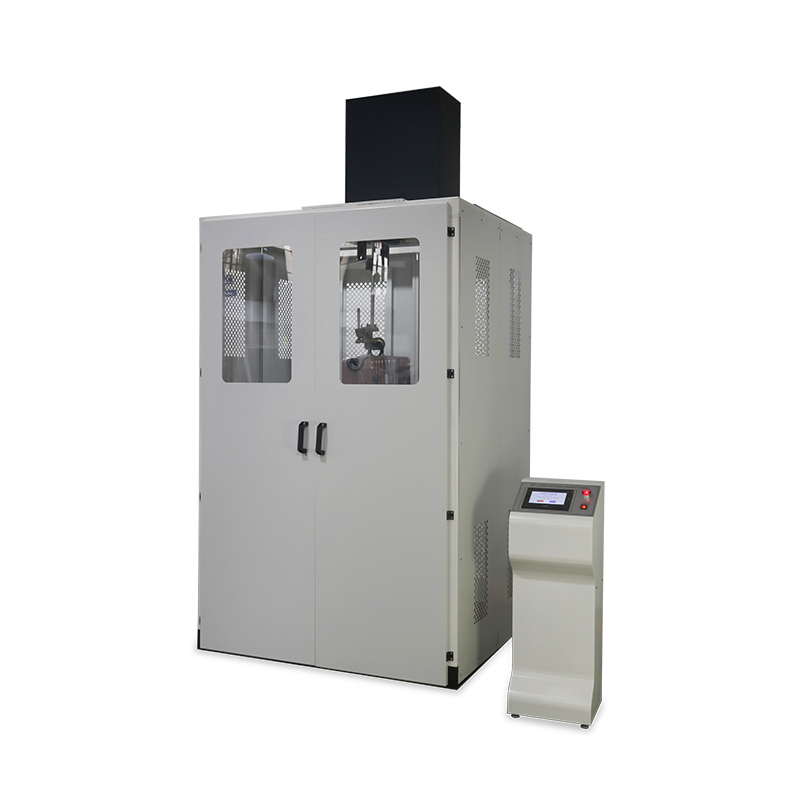

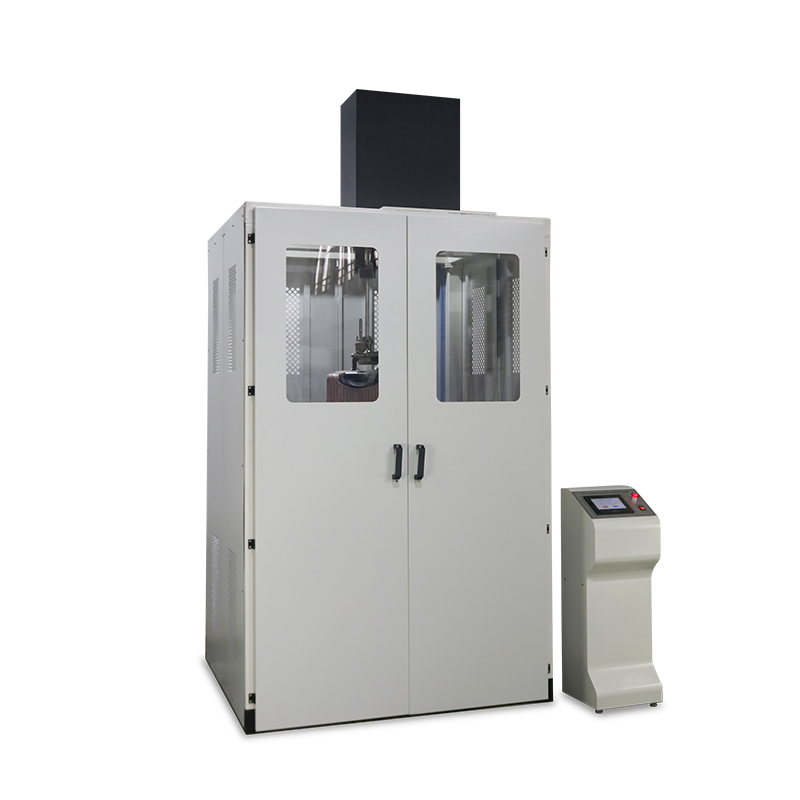

Suitcase Vibration Impact Testing Machine GT-LC02

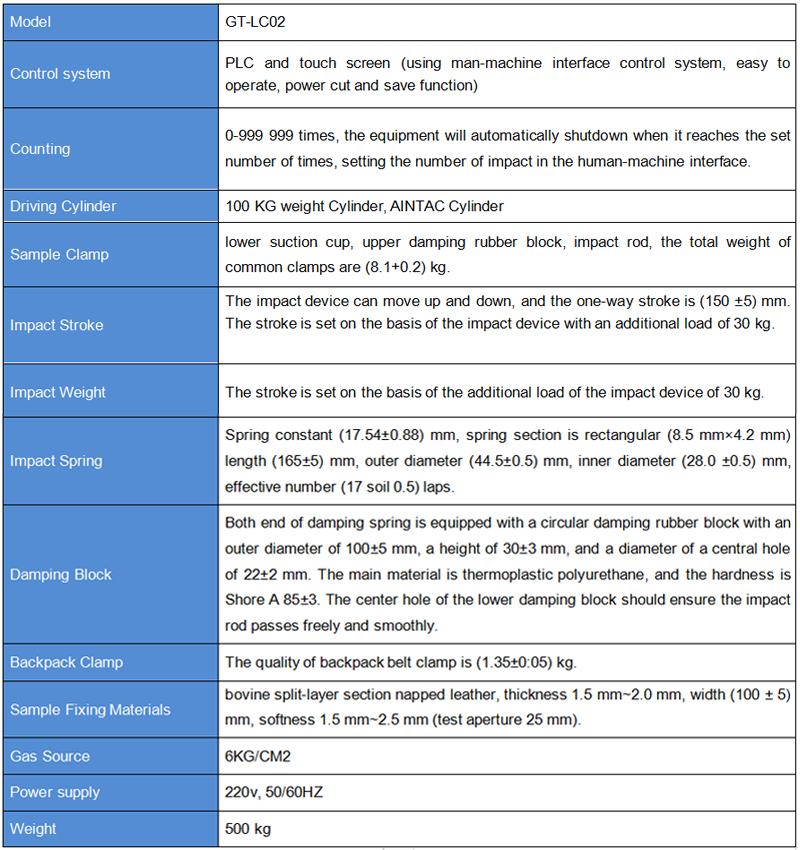

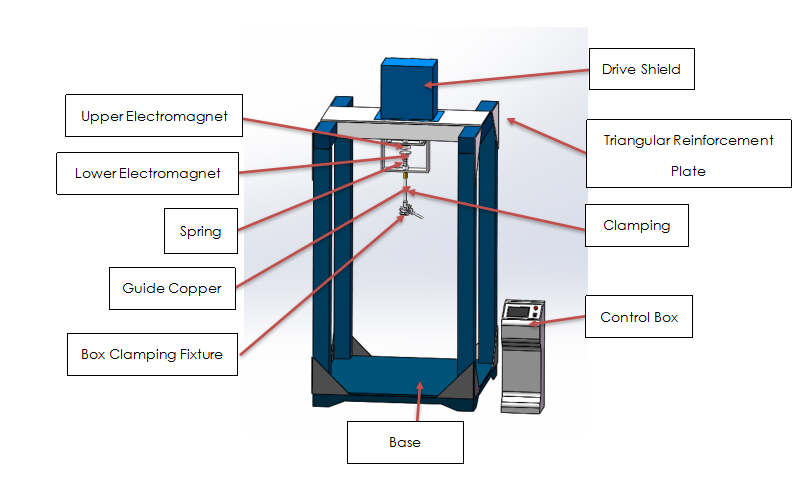

Model

GT-LC02

Control system

PLC and touch screen (using man-machine interface control system, easy to operate, power cut and save function)

Counting

0-999 999 times, the equipment will automatically shutdown when it reaches the set number of times, setting the number of impact in the human-machine interface.

Driving Cylinder

100 KG weight Cylinder, AINTAC Cylinder

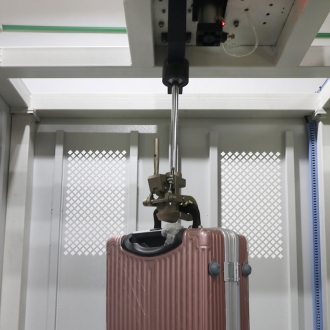

Sample Clamp

lower suction cup, upper damping rubber block, impact rod, the total weight of common clamps are (8.1+0.2) kg.

Impact Stroke

The impact device can move up and down, and the one-way stroke is (150 ±5) mm. The stroke is set on the basis of the impact device with an additional load of 30 kg.

Impact Weight

The stroke is set on the basis of the additional load of the impact device of 30 kg.

Impact Spring

Spring constant (17.54±0.88) Nmm, spring section is rectangular (8.5 mm×4.2 mm) length (165±5) mm, outer diameter (44.5±0.5) mm, inner diameter (28.0 ±0.5) mm, effective number (17 soil 0.5) laps.

Damping Block

Both end of damping spring is equipped with a circular damping rubber block with an outer diameter of 100±5 mm, a height of 30±3 mm, and a diameter of a central hole of 22±2 mm. The main material is thermoplastic polyurethane, and the hardness is Shore A 85±3. The center hole of the lower damping block should ensure the impact rod passes freely and smoothly.

Backpack Clamp

The quality of backpack belt clamp is (1.35±0:05) kg.

Sample Fixing Materials

bovine split-layer section napped leather, thickness 1.5 mm~2.0 mm, width (100 ± 5) mm, softness 1.5 mm~2.5 mm (test aperture 25 mm).

Gas Source

6KG/CM2

Power supply

220v, 50/60HZ
