Luggage Walked Wear Test Machine GT-LC01

(Furniture Testing)

Item NO.:
GT-LC01
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T, L/C
certificate:
ISO 9001, UKAS, CE
standard:
QB/T2920--2018

Contact Now

Description

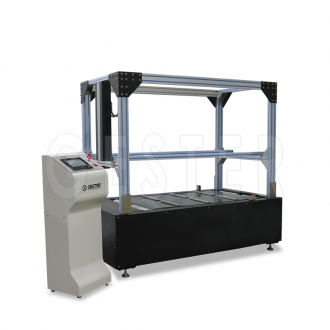

Luggage Walked Wear Test Machine

Applications:

Luggage Walked Wear Test Machine simulating the situation when luggage moves and keep it in continuous testing, is to test the quality of wheels, axle, wheel frame, tie rod and luggage, calculate and evaluate the wear value of wheels. Put moderate weights in the testing sample. When the conveyor belt travels, the friction plate and the sample wheel will collide and rub with each other, and the sample is subjected to shock oscillation and wear.

Standards:

QB/T2920--2018

Character:

GESTER develops the control system by ourselves, which has setting and counting functions.There are start, stop, pause, count and clear functions on the test control panel. It can count from 0 to 999,999 times. The machine will automatically stop when the times reaches the setting number or the wheel of luggage is broken. The Controlling System controls motor to drive the belt to rotational motion, the luggage will rise and fall when wheels reach the block A/B, and that will simulate the situation of different roads and is the important basis to evaluate the quality of luggage.

Suitcase Walk Mileage Abrasion Test Machine

Luggage Walked Wear Test Machine Key Specifications

Model	GT-LC01
Control System	PLC+ Touch Screen (Man-machine interface control system with easy operation and power-off saving function)
Counting	0-999,999 times, automatically stop the machine when reach the times. The cycle times could be set in the Touch screen.
Mileage	Mileage could be set, automatically stop the machine when reach the mileage.
Conveyor belt	Length is ( 3300±5) mm, width is 700mm. there are friction plates in the surface, arranged in 2 lines on the direction of movement averagely.
Friction plate	Made by aluminium, hardness HB(40土5)，length(300土2).
Controlling device	Speed, mileage, testing time are adjustable, and it has saving function. All controlling programs is controlled by PLC, could be used to set the mileage, testing time and numbers of cycle.
Belt	Wear-resisting belt, which has long working time
Power supply	3phases, 380v,50/60HZ
Weight	800kg

Applications Industry

All kinds of chair products can be tested on the Luggage And Suitcase Testing Machine Luggage Walked Wear Test Machine
