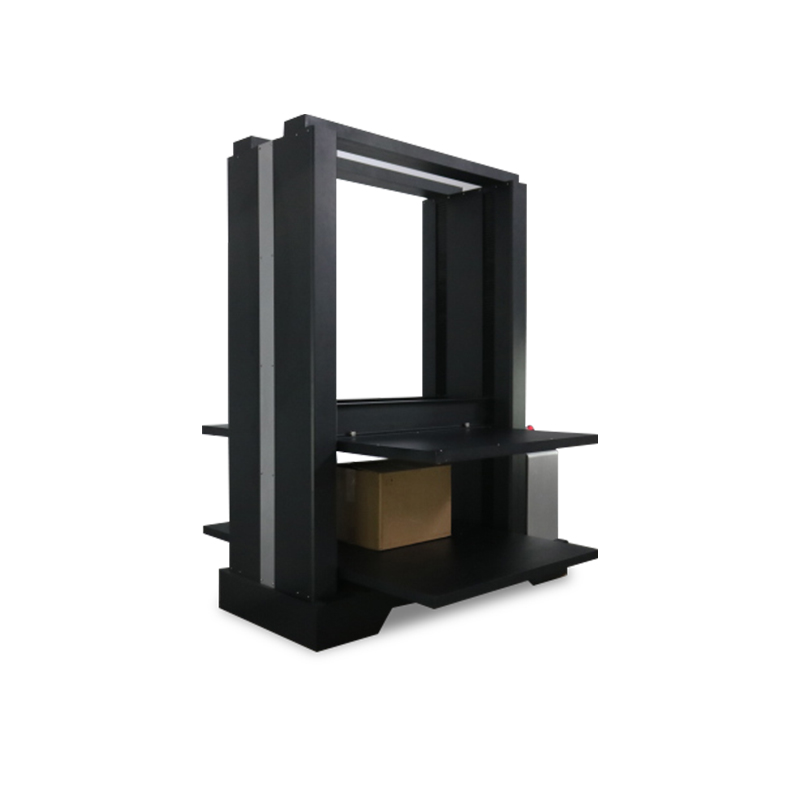

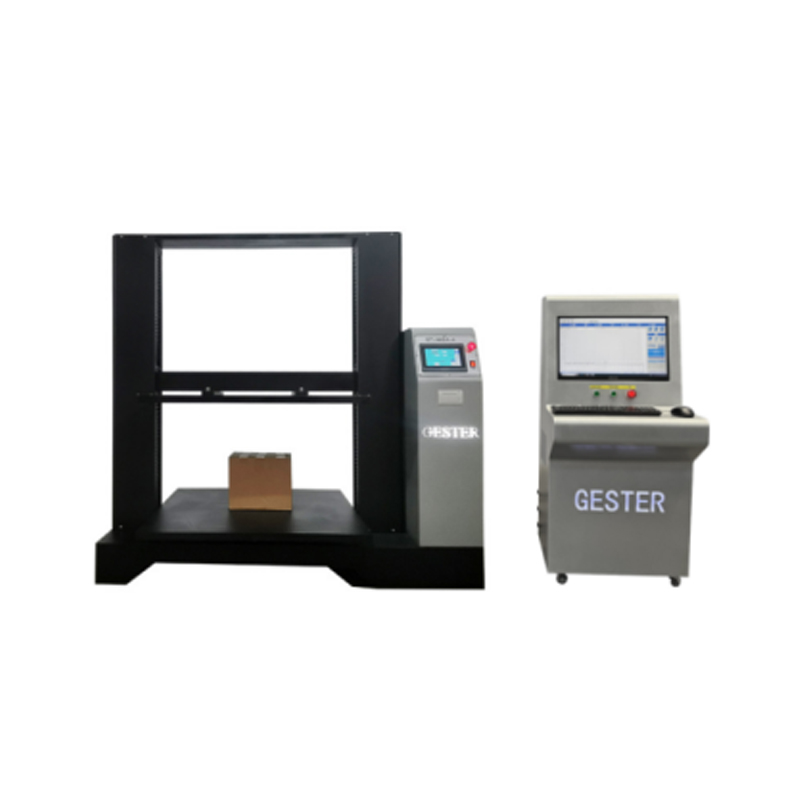

100KN Carton Box Compression Tester GT-N02C

Model

GT-N02C

GT-N02C-1

GT-N02C-2

GT-N02C-3

GT-N02C-4

GT-N02C-5

GT-N02C-n

Plate Size

500 x 500

600 x 600

800 x 800

1000 x 1000

1200 x 1200

Customized

MAX stroke

500

600

800

1000

1200

Customized

Measuring range

0-10KN, 20KN, 30KN, 50KN. 70KN, 100KN (Option)

Indication error

±0.5%

Test Speed

0.001-500mm/min, can set by computer, with up & down fast adjustment button of grips

Force Unit Switch

Kgf, N, Ibf, g, ton, Mpa

Display

Computer display mode

Stop Mode

Overload stop, emergency stop button, specimen damage automatic stop,

upper & lower limit set automatic stop, automatic reset function

Machine Drive

Servo motor drive, synchronous wheel and precision ball screw drive

Power

AC 220V 5A 50Hz
