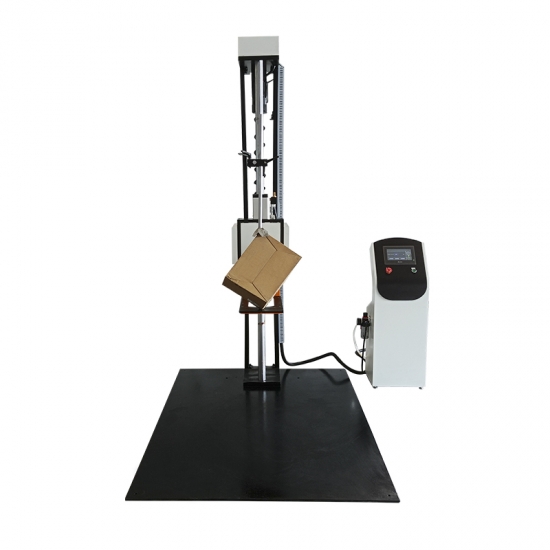

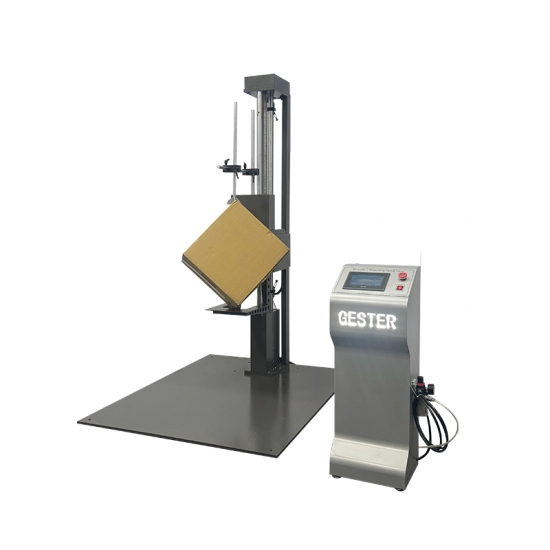

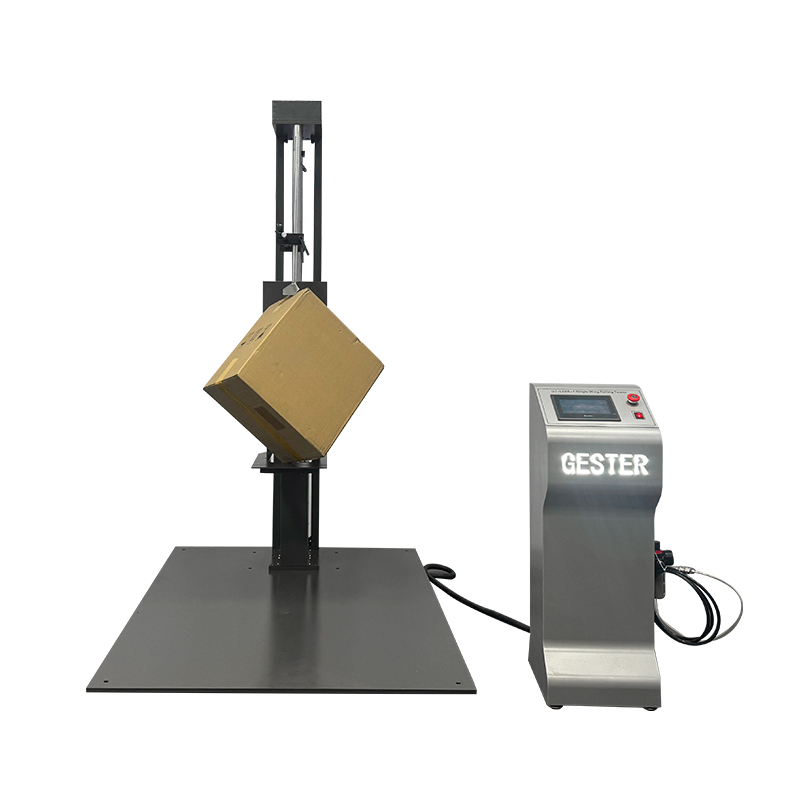

Single Arm Package Drop Tester GT-LC05-1

(Packaging Tester)

Item NO.:
GT-LC05-1
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE
standard:
ISO2248, JISZ0202-87, GB/T4857.5-92, ISTA

Contact Now

Description

Applications:

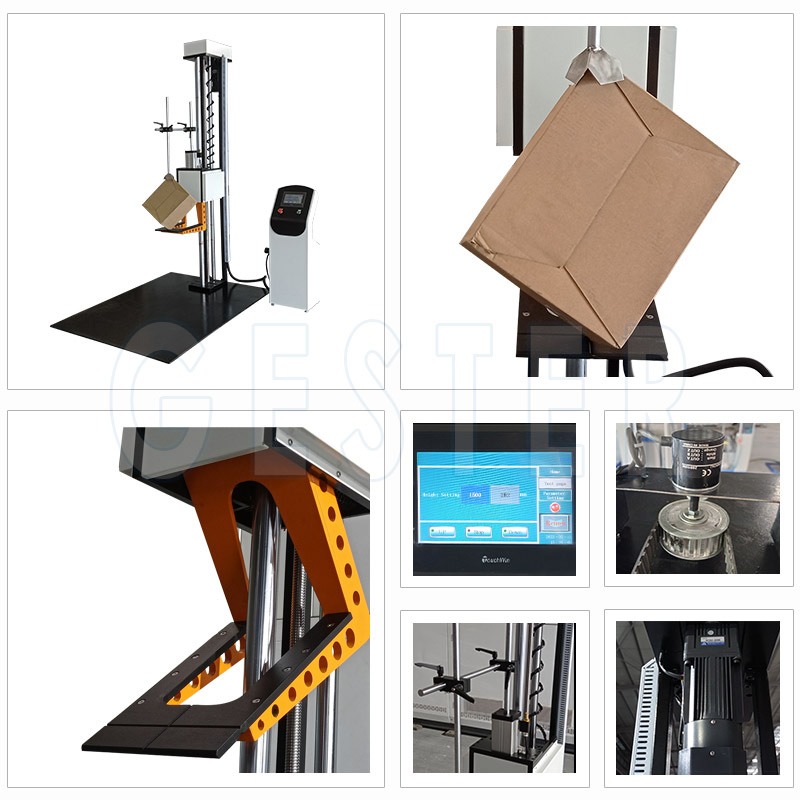

The Drop Tester is a precision testing instrument designed to simulate free-fall impacts during transportation and handling processes. This reliable equipment evaluates packaging durability, product protection capability, and structural design effectiveness by conducting standardized drop tests from adjustable heights.

Ideal for quality control in e-commerce packaging, electronic product boxes, pharmaceutical packaging, and fragile goods containers.

Standards:

ISO 2248, JIS Z0202, GB / T4857.5, ISTA

Single-Wing Carton Drop Tester Key Specifications

Model	GT-LC05-1
Falling height	400mm-1500mm(adjustable)
Falling height error	±10 mm(1%)
Parallel error of impact panel	≤ 1°
The error angle of the falling surface of the specimen in the process of falling	≤ 1°
Impact panel size	1700×1200(mm)
Bracket arm size	160×250×10(mm)
Overall dimension of test bench	≈1700×1200×2315(mm)
Thickness of the bottom plate	10mm (solid iron plate)
Maximum specimen size (surface drop)	750×750×1000(mm)
Maximum weight of the specimen	0-80Kg
Test method	surface, angle, edge all-round drop
Transmission mode	electric drive
Net weight (kg)	About 300 kg
Dimension (W×L×H)	1900x1200x2360 mm
Power supply	1 phase AC 220V 50HZ

Single Arm vs. Double Wings Drop Tester: Which One Suits Your Lab?

Choosing between a single-arm and double-wings drop tester depends primarily on your package weight, dimensions, and loading convenience:

Specimen Weight & Size:

Single Arm GT-LC05-1: Designed for specimens weighing 0 to 80 kg. It features a cantilever arm structure with an open-front area, making it compact and space-saving.

Double Wings Drop Tester GT-LC05-2: Designed for heavier or bulky cartons. The dual-wing platform provides bilateral support from both sides, eliminating center-of-gravity imbalance for wide base packages.

Clamping & Operation Efficiency:

Single Arm: Faster setup for small, narrow, or lightweight boxes. A single operator can easily place and align the package on the support plate.

Double Wings: Requires placing the cargo centrally over the split wings, ideal for square, heavy, or multi-person loading scenarios.
