ASTM Drop Tester
ASTM Drop Tester

ASTM Drop Tester GT-M35B

(Toys Testing Equipments)

  • Item NO.:

    GT-M35B
  • Lead Time:

    In stock, 7 days
  • Brand:

    GESTER
  • Payment:

    T/T, L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    ISO 8124-1, GB 6675-2, ASTM F963, 16CFR 1500
Description


ASTM Drop Tester

Applications:

The tester is to determine the toys fall on the floor through a certain height, fall in a certain number, then check whether the hazardous sharp points, hazardous sharp edges, hazardous small parts and hazardousdriving mechanisms have become accessible.


Standards:

GB 6675-2 section 5.24.2 and 5.24.3

ASTM F963 section 8.7.1 and 8.7.2

16CFR 1500 section 51 and 52 and 53




Test Range

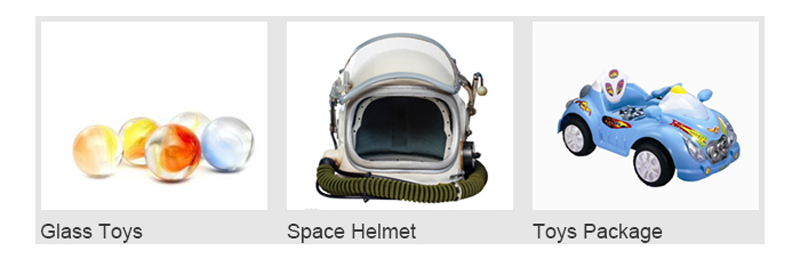

Glass toys or parts, expansive material toys or parts, the cover of toy drive device,all of  hard materials covering in the face (such as goggles, space helmets or welding masks), hard toy ball, the can be touched magnetic components of toys, toys attached to food.



Key Specifications

Model

GT-M35B

Drop height

Toys for under 18 months: 138 ± 5 cm



Toys for 18 months and over but under 96 months: 93 ± 5 cm

Number of drops

Toys for under 18 months: 10



Toys for 18 months and over but under 96 months: 4

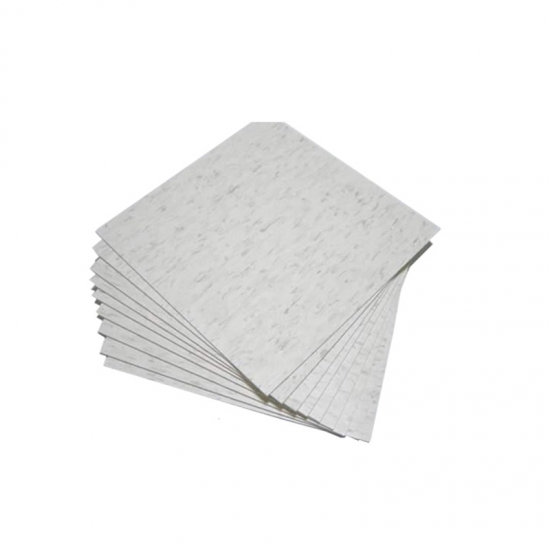

Material

Vinyl composition tile

Dimensions (L x W x T)

300 x 300 x 3 mm

(9 pcs/set)



Accessories

Optional accessories

Optional

GT-MB01 Sharp Edge Tester



Optional

GT-MB03 Small Part Cylinder



Optional

GT-MB04 Sharp Point Tester



Optional

GT-MB06 Accessibility Probe



Optional

GT-M47 Small Ball Test Template



Applications Industry
All kinds of children products can be tested on the ASTM Drop Tester
