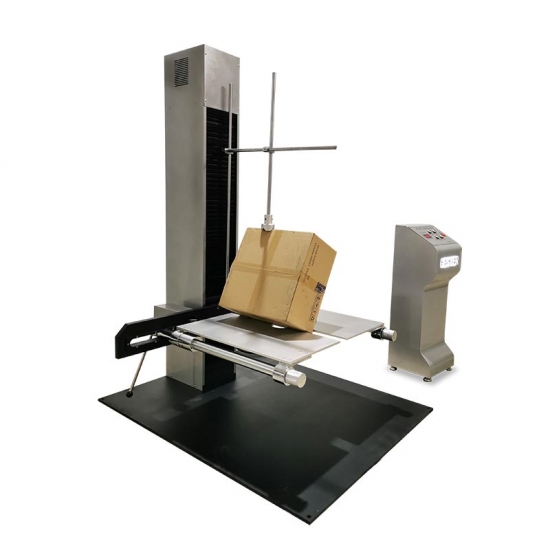

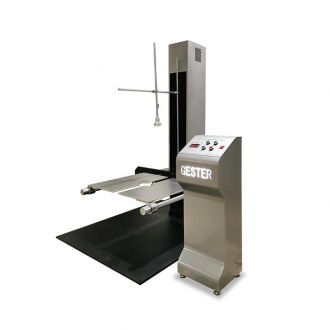

Double Wings Drop & Falling Tester GT-LC05-2

(Packaging Tester)

Item NO.:
GT-LC05-2
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T, L/C
certificate:
ISO 9001, UKAS, CE
standard:
ISO 2248，JIS Z0202，GB/T4857.5, ISTA

Contact Now

Description

Double Wings Drop Testing Machine

Applications:

In the process of moving or transporting the product, there may be a

drop in the product and damage to the internal product. The damage can be prevented in advance, that is machine is expected to be tested for the best possible solution so that it can be minimized during transport loss

Principle:

This series of drop test machine, using double column to the spring buffer, height scale instructions, stable and reliable, can be achieved edge, surface, angle drop.

Standards:

ISO 2248, JIS Z0202, GB/T4857.5, ISTA

Package Drop Tester Key Specifications

Model	GT-LC05-2
Display mode	Digital display
Drop height	300~1500mm
Dimension of drop panel	(W×L)1700×1500mm
Max weight of sample	100kg
Max dimension of sample	(L×W×H)1000×1000×1000mm
Transfer method	Electric drive
Single-wing area	(W×L)250×700mm
Power	1∮,AC220V,50Hz, 1/2P
Weight of machine	About 1021kg
Dimension	(L×W*×H)1770×1510×2831mm
Structural material part
Base plate	1500×1500x15mm Iron spray
Test table	12mmHard aluminum plate
Main pole	45＃Solid steel, surface heat treatment
Main force pole	60＃Solid screw with steel cups up and down
Fixture	45＃Solid steel, surface heat treatment. Two ends with six products and angle fixed angle code
Control part
Main force	Import 1 / 2HP motor with 20: 1 reducer 1 set
Controller	Imported Shihlin magnetic cable system and overload protection 2 sets
General system:	15A Fuji switch 1
Travel switch	Japan imported limit switch 2 sets
Control switch	Diameter of 25mm button 5 sets
Protection	motor fault protection, high and low limit protection, emergency stop protection

FAQ

Q: Heavy wooden crates and pallets cause strong impact forces. How durable is the impact base plate of GT-LC05-2?

A: The base floor of the package drop tester GT-LC05-2 is built from high-strength reinforced steel plate with anti-deformation structural ribbing beneath, capable of handling continuous high-energy impacts without cracking or warping. The impact surface remains flat over years of heavy packaging tests.

Q: What safety protection features are in place for operating heavy-package drop tests?

A: Safety is paramount when testing heavy cartons. The GT-LC05-2 is equipped with upper and lower double-limit switches, emergency stop buttons, and hydraulic deceleration buffers to absorb recoil.

Q: Can this machine handle non-standard box dimensions or customized drop heights?

A: Absolutely. As a direct original equipment manufacturer (OEM/ODM), GESTER can customize the dual-wing platform width, load capacity, and maximum drop height to match your specific packaging dimensions and testing protocols.
