Zero Height Drop Tester GT-LC06

(Furniture Testing)

Item NO.:
GT-LC06
Lead Time:
20-30 days
Brand:
GESTER
Payment:
T/T, L/C
certificate:
ISO 9001, UKAS, CE
standard:
ISTA

Contact Now

Description

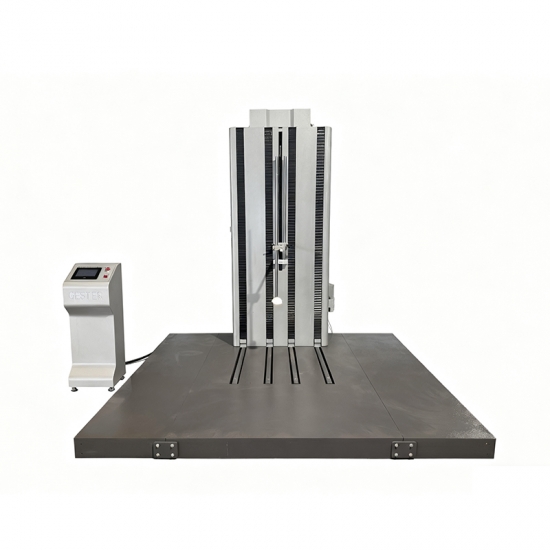

Zero Height Drop Tester GT-LC06

Applications:

The drop tester is mainly used to evaluate the influence of the package in the actual transportation, the loading and unloading process, and to evaluate the impact strength and the rationality of packaging design.

Standards:

ISTA

Test Method

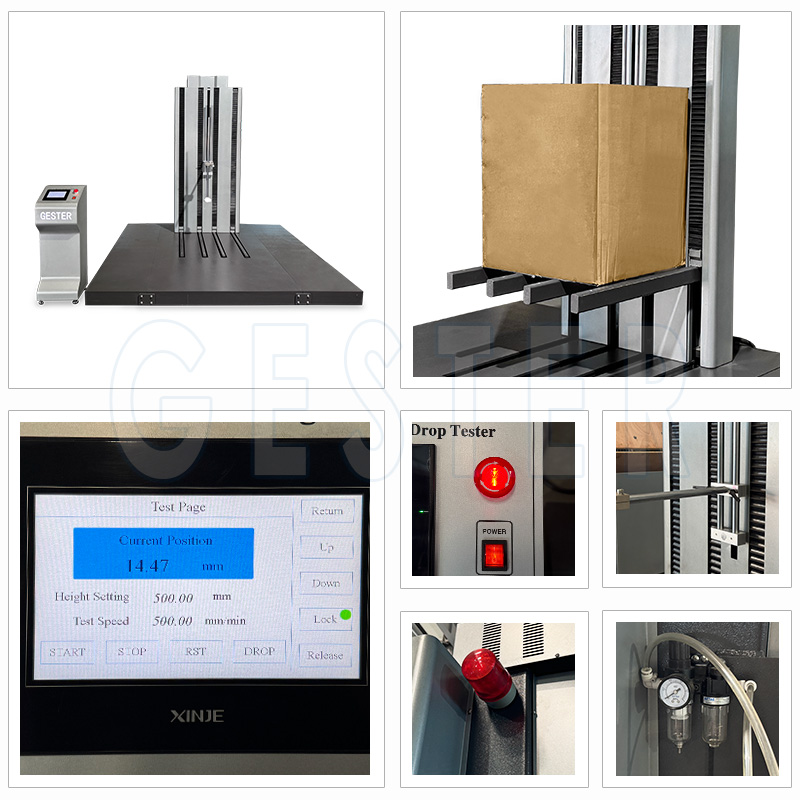

The zero drop tester consists of a "E" fork which can be moved down quickly. The tested goods are placed in balance according to the test requirements (face, edge, angle test).
When testing, the pallet moves down quickly,separate from the specimen, before the test package goods dropped to the floor, under the effect of high shock absorber, "E" fork has been embedded in the floor. Theoretically, the zero drop tester can do the test from zero height to maximum drop height.
Drop height set through the test requirements, and automatically do the drop test according to the set height. Using the PLC programming man-machine interface control, simple, convenient and powerful.

Key Specifications

Model	GT-LC06
Control mode	PLC touch screen
Maximum test load	200kg
Maximum specimen size	2000×1000×1000(mm, L×W×H)
Test height	0~1200mm adjustable
Test aspects	Edge, Angle, Surface
Drive	Motor drive
Protection device	Induction type protection device
Material of Impact plate	45# steel, solid steel plate
Reading	Digital
Bracket structure	45# steel
Transmission	Imported linear slider and copper sleeve, 45# steel
Accelerating device	Mechanical(Ensure that the speed of the bracket falls faster than the drop rate of the test product)
Drop mode	Electromagnetic and pneumatic integrated
Power supply	220V, 50HZ, 5KW
Weight	About 1800KG
Dimension	2200×1500×2000mm

Applications Industry

All kinds of chair products can be tested on the Zero Height Drop Tester
