Single Wing Falling Tester
Single Wing Falling Tester Single Wing Falling Tester Single Wing Falling Tester Single Wing Falling Tester Single Wing Falling Tester

Single Wing Falling Tester GT-LC05-1

(Furniture Testing)

  • Item NO.:

    GT-LC05-1
  • Lead Time:

    20-30 days
  • Brand:

    GESTER
  • Payment:

    T/T, L/C
  • certificate:

    ISO 9001, UKAS, CE
  • standard:

    ISO 2248, JIS Z0202, GB / T4857.5, ISTA
Description

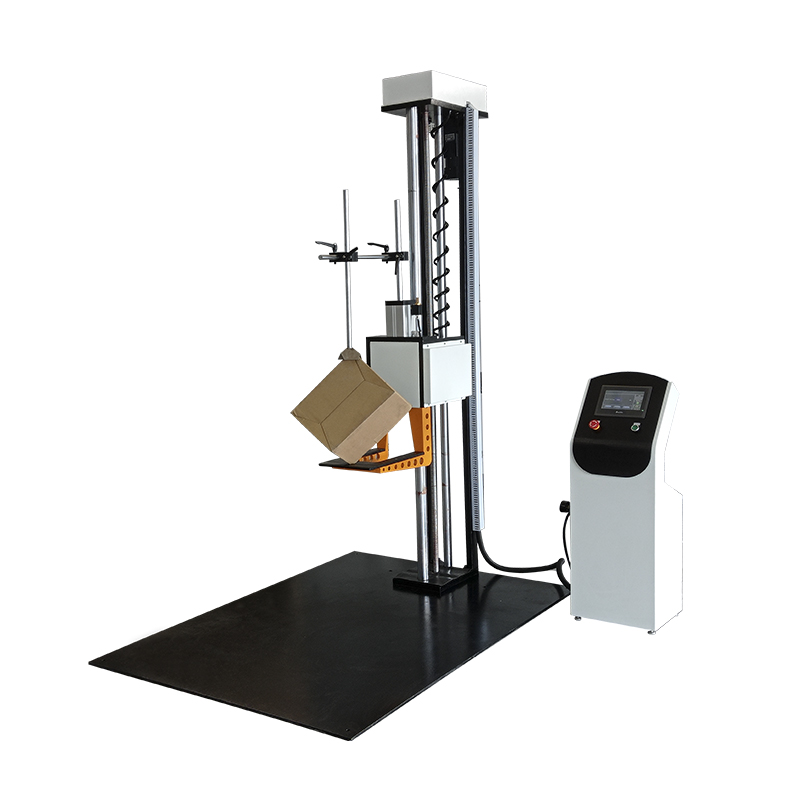

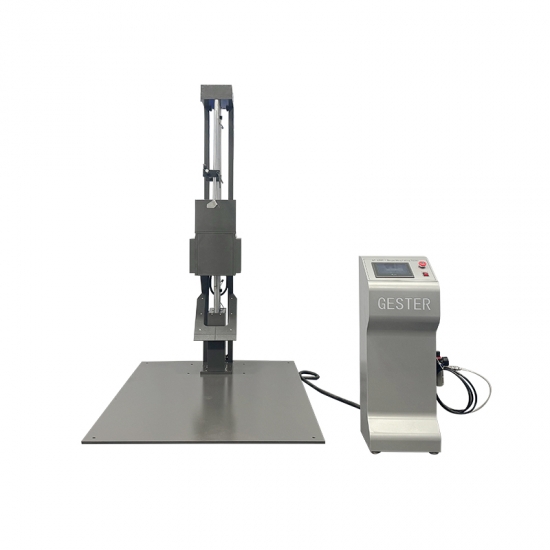

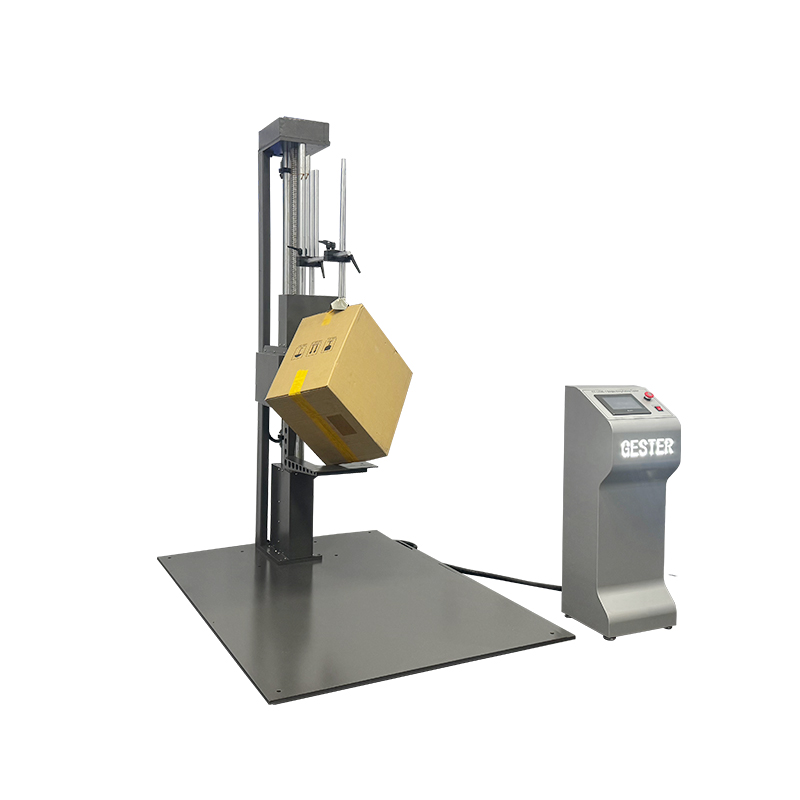

Single Wing Falling Tester


Applications:

This machine is designed to test the damage of product packaging and to evaluate the impact resistance during transport.

Can be on the package surface, angle, edge for free drop test, equipped with digital display height meter and using the decoder for a high degree tracking, which can accurately give the product drop height, with the default drop height error of not more than 2% or 10 mm.




Standards:

ISO 2248, JIS Z0202, GB / T4857.5, ISTA



Key Specifications

Model

GT-LC05-1

Falling height

300mm-1500mm(adjustable)

Falling height error

±10 mm(1%)

Parallel error of impact panel

≤ 1°

The error angle of the falling surface of the specimen in the process of falling

≤ 1°

Impact panel size

1700×1200(mm)

Bracket arm size

160×250×10(mm)

Overall dimension of test bench

≈1700×1200×2315(mm)

Thickness of the bottom plate

10mm (solid iron plate)

Maximum specimen size(mm)

800×800×1000(mm)

Maximum weight of the specimen

0-80Kg

Test method

surface, angle, edge all-round drop

Transmission mode

electric drive

Net weight (kg)

About 300 kg


Applications Industry
All kinds of chair products can be tested on the Single Wing Falling Tester
