How To Test The Quality Of The Mattress Oct 26, 2021

Mattress is one of our daily necessities, it is not only related to the quality of our sleep, but also related to our physical and mental health. Therefore, the quality of the mattress has become particularly important. So how to judge the quality of the mattress

The mattress durability tester is used to test the bearing capacity of the mattress for the long-term durability load, and to evaluate the softness and hardness level of the mattress by testing the grade value of the softness and hardness of the mattress. It can automatically test or manually test the standard parameters of the spring soft mattress and brown mattress.

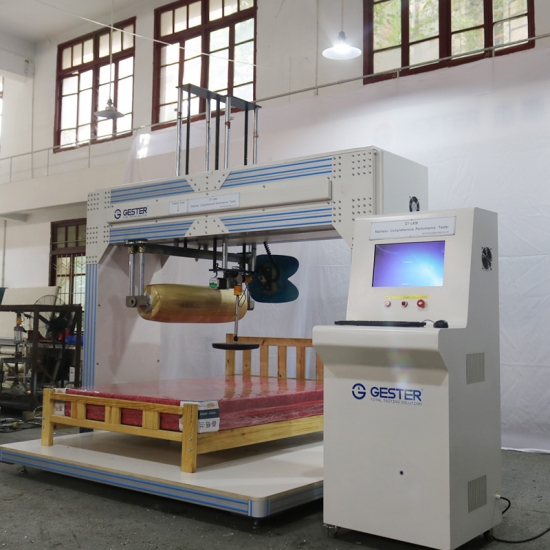

Gester has developed a comprehensive mattress tester, which can test mattresses to the greatest extent.

Applications:
Mattress Comprehensive Performance Tester is the newest design mattress comprehensive performance tester according to EN 1957 and EN 1725 standard.

In general, the Comprehensive Mattress Test Machine is configured with the following four test functions:

1. Height loss test: the height loss expresses the change in the height of a test unit caused by the durability test.
2. Durability test : test simulating the repeated application of loads and/or movement of components occurring during long-term use and assessing the strength of the article under such conditions. The durability test is a procedure mainly intended to evaluate the change of the properties of the test unit caused by repeated loading.
3. Hardness Value & Firmness rating test : the hardness value is determined from load/deflection measurement which be obtained by pressing a load pad into the test unit and measuring the associated value of indentation and force simultaneously. And the firmness rating is used to express the subjective assessment by persons, it is determined form the hardness value upon results from empirical studies.
4. Bed edge durability test: apply a force of 1000N for 5000 cycles by means of edge loading pad at the bed edge test point, then measure the height loss .

Standards:
BS EN 1957, EN 1725, QB/T 1952.2

Feature
1. The whole machine frame made of high quality aluminum, beautiful.
2. This machine has two styles: Type A uses PLC to touch the screen control; Type B uses the entire computer control.
3. Roller can be electric lift, easy to operate.
4. Motor is Japan's Panasonic servo motor, the power sensor is the United States Celtron.
5. The machine is equipped with an alarm device, indicating safe operation.
