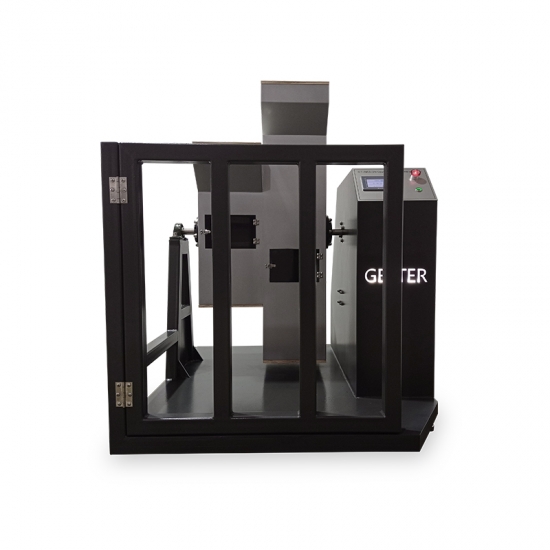

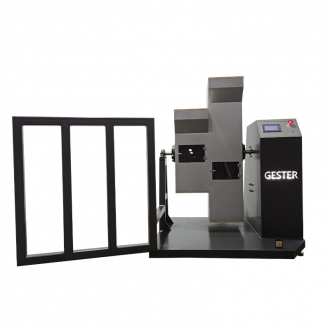

2 Working Positions Tumble Tester GT-N03-2

(Packaging Tester)

Item NO.:
GT-N03-2
Lead Time:
15-30 days
Brand:
GESTER
certificate:
ISO 9001, UKAS, CE

Contact Now

Description

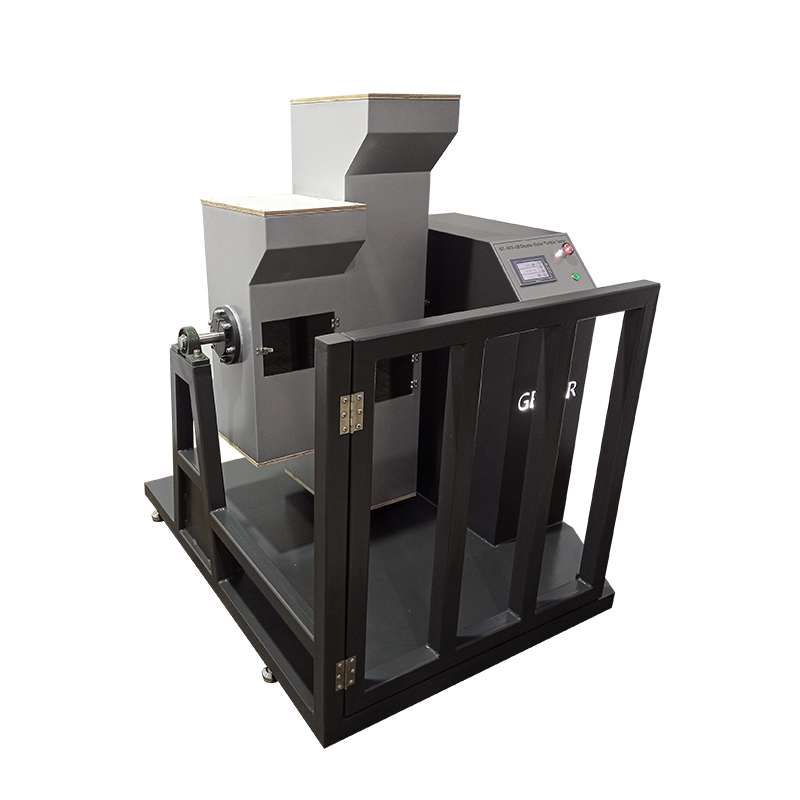

Double-Roller Tumble Tester

Applications:

The Tumble tester GT-N03-2 is an essential tool for manufacturers and quality control professionals who need to ensure the durability and drop resistance of plugs, sockets, non-detachable connectors, and plug ballasts. With its advanced features, compliance with international standards, and user-friendly design, it provides reliable and precise testing solutions for a wide range of applications.

Standards:

GB/T2099.1, GB2423.8-1995, IEC60884-1, IEC60068-2-32:2006, GB2423.7-2018/IEC60068-2-31

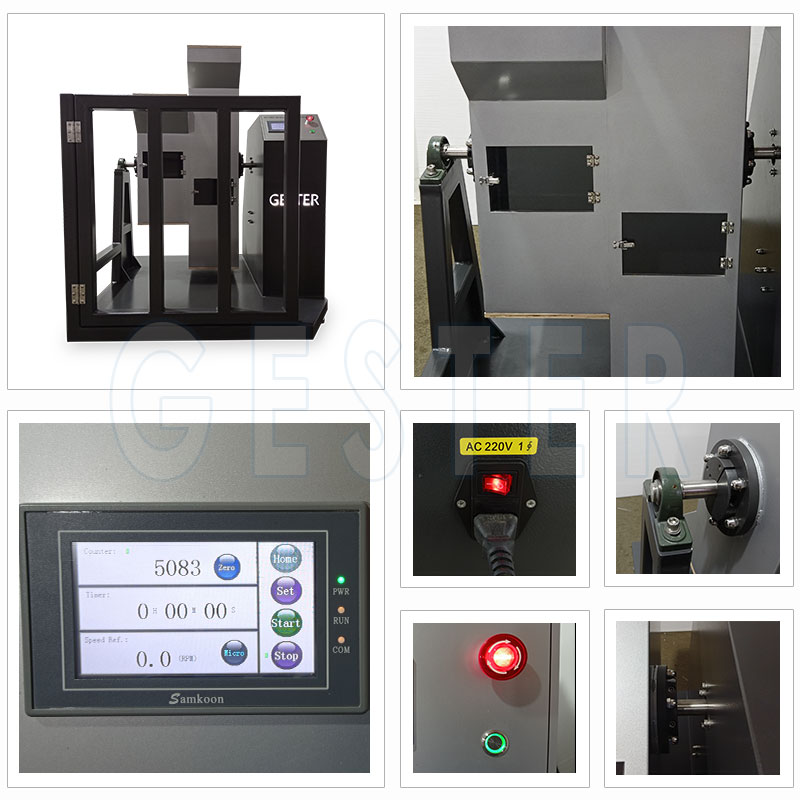

2 Working Positions Tumble Tester Features

Preset Test Times‌: The electric control cabinet is equipped with a roller structure that allows users to preset the number of test cycles, ensuring precise and repeatable testing.
Automatic Shutdown‌: The Tumble test machine automatically stops when the preset test times are reached, enhancing safety and convenience.
Durable Construction‌: Built with high-quality materials, the Tumbling Barrel Drop Tester ensures long-term reliability and minimal maintenance.
User-Friendly Interface‌: Intuitive controls and clear displays make operation straightforward, even for first-time users.

Key Specifications

Model	GT-N03-2B		GT-N03-2C
Control Mode	Touch screen control
Drive Mode	Servo motor drive
Roller Material	The side is made of 1.5mm high-quality steel plate, the upper and lower side are made from 10-19mm wood plates and it have 3mm steel plates padded on. Inclined sliding surface is a plastic laminate with a triangular rubber pad.
Working Positions	2 working positions (Double- Roller)
Drop Height	500mm	1000mm	1000mm	1000mm
Rotational Speed	5 rpm
Drop Rate	10 Times/min
Test Times	0~9999 times, can be set
Test Sample	Plugs, sockets and other electrical accessories
Power Supply	AC220V±10%/50-60Hz
Dimensions	Approx. 1100×1200×1300(mm)
Weight	180kg

FAQ

Q1: How does the Tumble Drop Tester GT-N03-2 fulfill the mechanical strength testing requirements of IEC 60884-1 and GB/T 2099.1 for plugs and sockets?

A: IEC 60884-1 and GB/T 2099.1 require electrical plugs and sockets to undergo a specified number of tumbling falls inside a rotating barrel to verify that pins, enclosures, and internal wiring do not break or loosen under repeated impact. The GT-N03-2 features precision-designed drop plates and standardized drop height geometry to ensure compliant impact energy on every rotation.

Q2: What is the main difference between testing under IEC 60068-2-31 (GB 2423.7) and IEC 60068-2-32 (GB 2423.8)?

A: While both standards address repeated free-fall dynamics, IEC 60068-2-31 / GB 2423.7-2018 focuses on rough handling shocks experienced by complete equipment during operation, whereas IEC 60068-2-32 / GB 2423.8-1995 specifically governs repeated free-fall tumbling inside a rotating barrel. The GT-N03-2 seamlessly handles both protocols through programmable rotation counters and interchangeable drop height baffles.

Q3: What are the efficiency advantages of having 2 working positions on the GT-N03-2?

A: Dual independent rotating barrels allow quality control technicians to test two specimens simultaneously, effectively doubling testing throughput. You can run two identical plugs/sockets to verify statistical consistency or test two different components under distinct cycle counts at the same time.

Q4: Can GESTER provide complete transit and physical testing solutions for electronic accessories?

A: Absolutely. As a factory-direct manufacturer with nearly 30 years of experience, GESTER supplies an integrated range of testing machines. Beyond the GT-N03-2, we provide matching [Package Drop Testers], [Transportation Vibration Testers], [Box Compression Testers], and [Environmental Conditioning Chambers], complete with direct engineering support, unified software interfaces, and fast global shipping.
