7/F, No.15, Chifeng Road, Licheng Region, Quanzhou city of Fujian PR,China.A good office chair must not only conform to the human body structure, but also be strong and able to bear weight, and sitting on it makes people feel relaxed.
Our Chair Durability Testing Machine can be used to test specimens like table, office chair and sofa. Check the durability, damage and shape change of seating, backrest, armrest and the whole specimen.

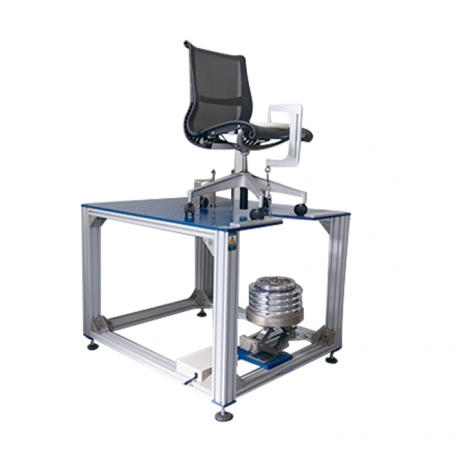

A.Chair Front Stability Testing Machine GT-LB06A
Chair Front Stability Testing Machine is used to test the forward stability of chairs.

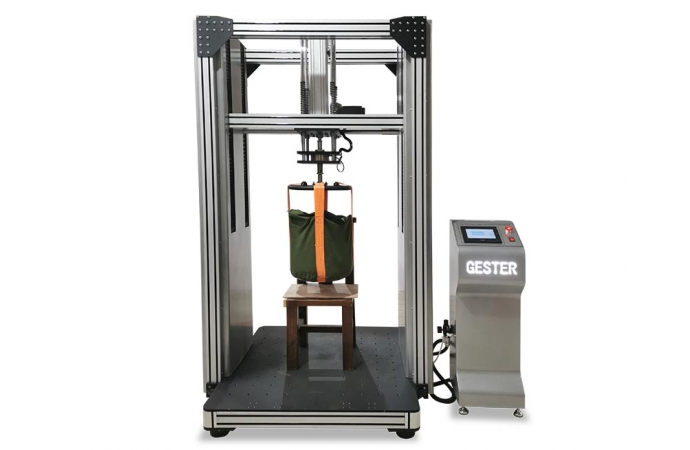

B. Chair Seating Impact Durability Testing Machine GT-LB05
This Chair Seating Testing Machine applies to all types of chairs, with 2 functions of chair seating impact and seating durability test.
The purpose of this test is to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat and evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.

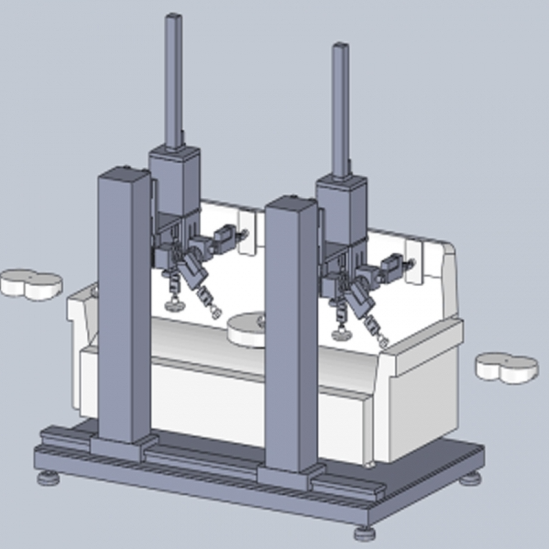

C. Multiple Seating Chairs Strength And Durability Testing Machine GT-LB31
Multiple Seating Chairs Strength and Durability Testing Machine is used for testing the strength and durability of the armrest, seats and backrest by simulating the loading of the seats during daily use. The machine is equipped with 2 testing position. Each position includes 4 drive devices, in which one for seating test, one for backrest test and two for armrest test. That is, this machine is equipped 8 drive devices and all of them can be controlled separately.
The machine can test 2 sing-seat chair at the same time, and also can test a multiple-seat chairs or sofas.

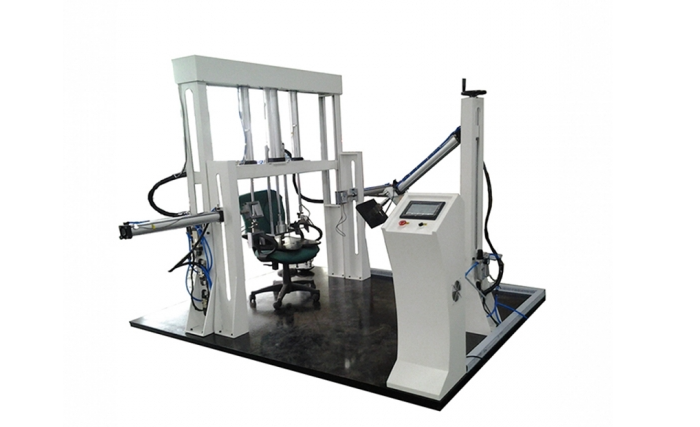

D.Chair Assembly Testing Machine GT-LB08-02
This Chair Assembly Testing Machine is according for the standard EN 1728 and combination with different methods:
Seat static load and back static load test
Seat and back durability test
Seat front edge static load test
Seat impact test
Back rests vertical load test
E.Chair Seating And Back Testing Machine GT-LB04-3
The chair seating and back tester tests the strength and durability of the seats and backrests by simulating the routine use loading of the seat.
The chair testing machine is equipped with two drive units, and can be individually controlled to repeatedly load the test points of the seat. Through different parameter settings, the machine can complete the following types of test functions on the seat:
1. Seat and back static load test.
2. Seat and back durability test.
3. Seat front edge static load and durability tests;
4. Horizontal forward static loading test for backrest.
5. Headrest static load test,
6. Legs forward static load test,
7. Leg lateral direction static load test.
